Using Environment Variables

5-minute path

Create an environment variable, reference it as ${workflow.env.variable-name}, use .$ when the value is JSON, and keep secrets in secrets instead.

Creating environment variables

Environment variables can be created through the API or UI. For repeatable deployments, use the API and manage values per cluster or environment.

Using APIUsing Conductor UI

Create or update a plain-text variable:

curl -sS -X PUT "$CONDUCTOR_SERVER_URL/environment/payment-api-base-url" \
  -H "X-Authorization: $CONDUCTOR_AUTH_TOKEN" \
  -H "Content-Type: text/plain" \
  -d 'https://payments.example.com'

Create or update a JSON variable:

curl -sS -X PUT "$CONDUCTOR_SERVER_URL/environment/payment-api-config" \
  -H "X-Authorization: $CONDUCTOR_AUTH_TOKEN" \
  -H "Content-Type: text/plain" \
  -d '{"baseUrl":"https://payments.example.com","timeout":5000,"region":"us-east"}'

List all environment variables:

curl -sS "$CONDUCTOR_SERVER_URL/environment" \
  -H "X-Authorization: $CONDUCTOR_AUTH_TOKEN"

Related APIs:

To create an environment variable:

Go to Definitions > Environment Variables from the left navigation menu on the Conductor cluster.
Select + New environment variable.
Enter the following details:
Name: A unique identifier for the variable. This name will be used to reference the variable in workflow definitions.
Value: The value to be stored as the variable.
Value Type: Select Plain Text or JSON.
Select Add to save the variable.

Using environment variables in workflow

To use an environment variable in a workflow, use the following expression:

${workflow.env.variable-name}

Replace variable-name with the actual environment variable name. This expression dynamically retrieves the variable during workflow execution. Ensure that the referenced environment variable exists on the cluster before using it in a workflow.

If the environment variable is a JSON value, use dot notation to access its fields:

${workflow.env.variable-name.fieldName}

You can also use standard JsonPath notation:

${workflow.env.variable-name.$.fieldName}

Both forms are equivalent. To retrieve the entire JSON object, use:

${workflow.env.variable-name.$}

The expression is validated when saving the workflow definition. An invalid field path will result in a validation error and the workflow cannot be saved.

Updating environment variables

Updating a variable changes the value used by future workflow executions without changing the workflow definition.

Using APIUsing Conductor UI

curl -sS -X PUT "$CONDUCTOR_SERVER_URL/environment/payment-api-base-url" \
  -H "X-Authorization: $CONDUCTOR_AUTH_TOKEN" \
  -H "Content-Type: text/plain" \
  -d 'https://payments-v2.example.com'

To update an environment variable:

Go to Definitions > Environment Variables, and select the variable to update.
In Value, enter the updated value.
Select Edit to confirm.

Before changing a value used by production workflows, check which workflows reference it and verify the expected shape. JSON variables are especially easy to break if a field is renamed.

When to use environment variables vs secrets

Use	Environment variable	Secret
API base URL	Yes	No
Feature flag	Yes	No
Region or tenant code	Yes	No
Numeric timeout or threshold	Yes	No
API token	No	Yes
Password or private key	No	Yes
Webhook signing secret	No	Yes

Production notes

Use environment variables for configuration, not credentials.
Use stable names that do not include environment names when the same workflow is deployed to multiple clusters.
Treat JSON variables as a contract. Changing field names can break workflows.
Prefer small, focused variables over one large global config object.
Verify permissions for the application identity that starts the workflow.

Examples

Using environment variables in a workflow

To illustrate the use of environment variables in a workflow, consider the following variable stored in Orkes Conductor.

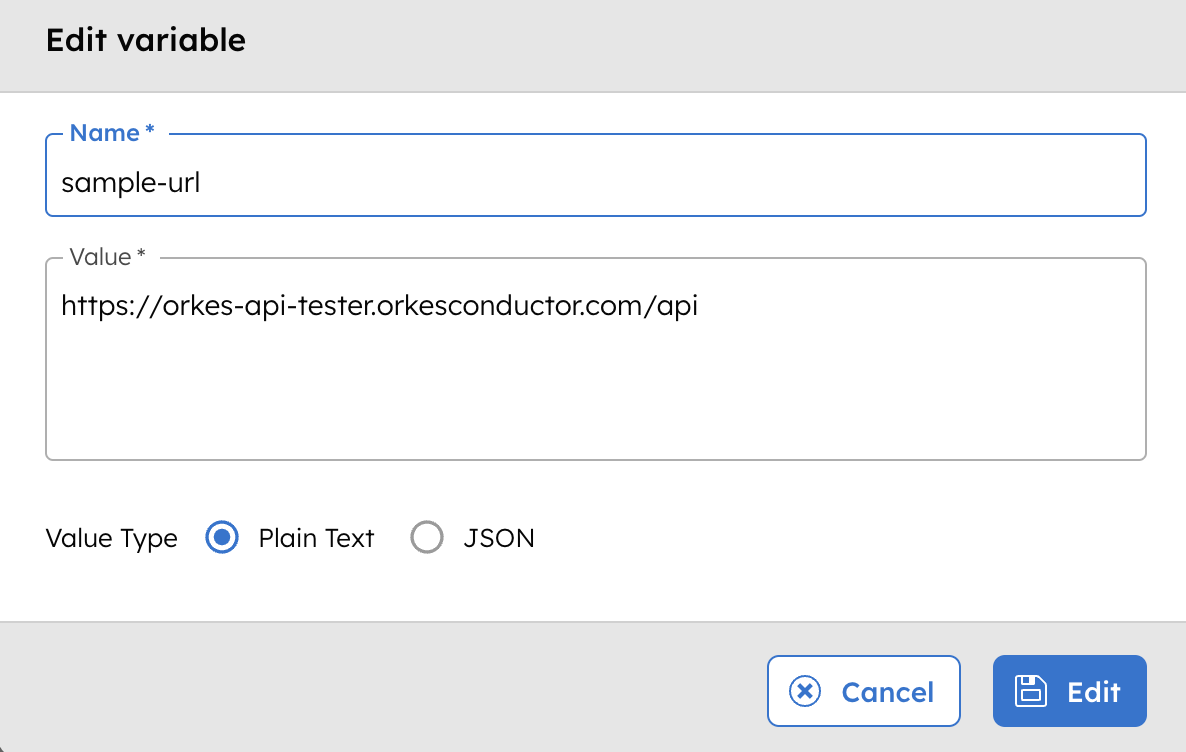

Sample environment variable

The following example defines a workflow that references the stored environment variable:

{
  "name": "sample-workflow",
  "description": "Workflow to demonstrate passing variables through environment variables",
  "version": 1,
  "tasks": [
    {
      "name": "http",
      "taskReferenceName": "http_ref",
      "inputParameters": {
        "http_request": {
          "uri": "${workflow.env.sample-url}",
          "method": "GET",
          "connectionTimeOut": 3000,
          "readTimeOut": "3000",
          "accept": "application/json",
          "contentType": "application/json",
          "encode": true
        }
      },
      "type": "HTTP"
    }
  ],
  "schemaVersion": 2
}

When this workflow runs, the expression ${workflow.env.sample-url} is dynamically replaced with the actual variable value. To verify that the stored variable is passed correctly, go to the workflow execution page, select the HTTP task, and check the Input.

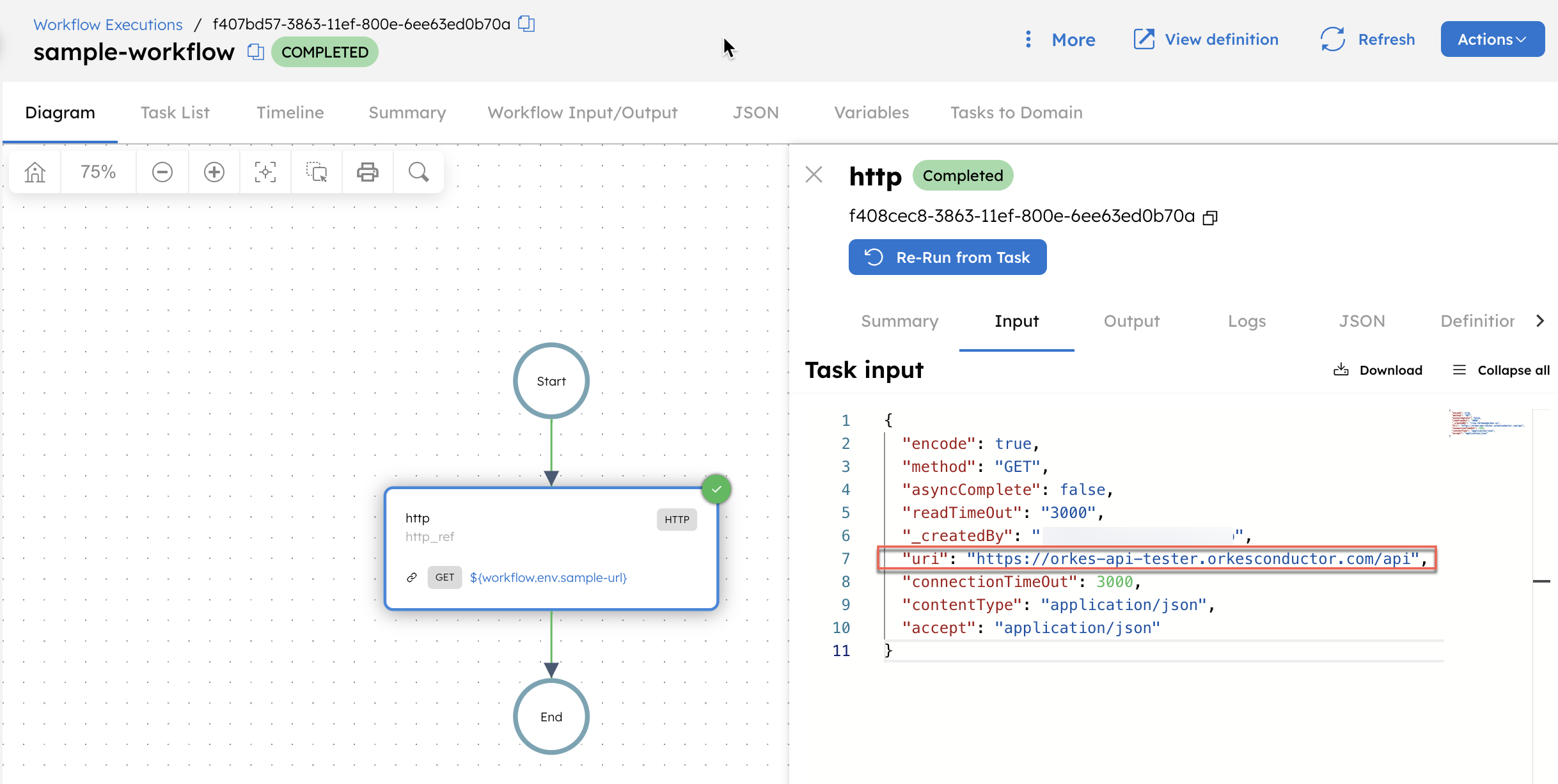

Verifying sample environment variable used in workflow definition

Using JSON environment variables in a workflow

This example shows how to use a JSON environment variable in a workflow. Assume the following environment variable is stored in Orkes Conductor:

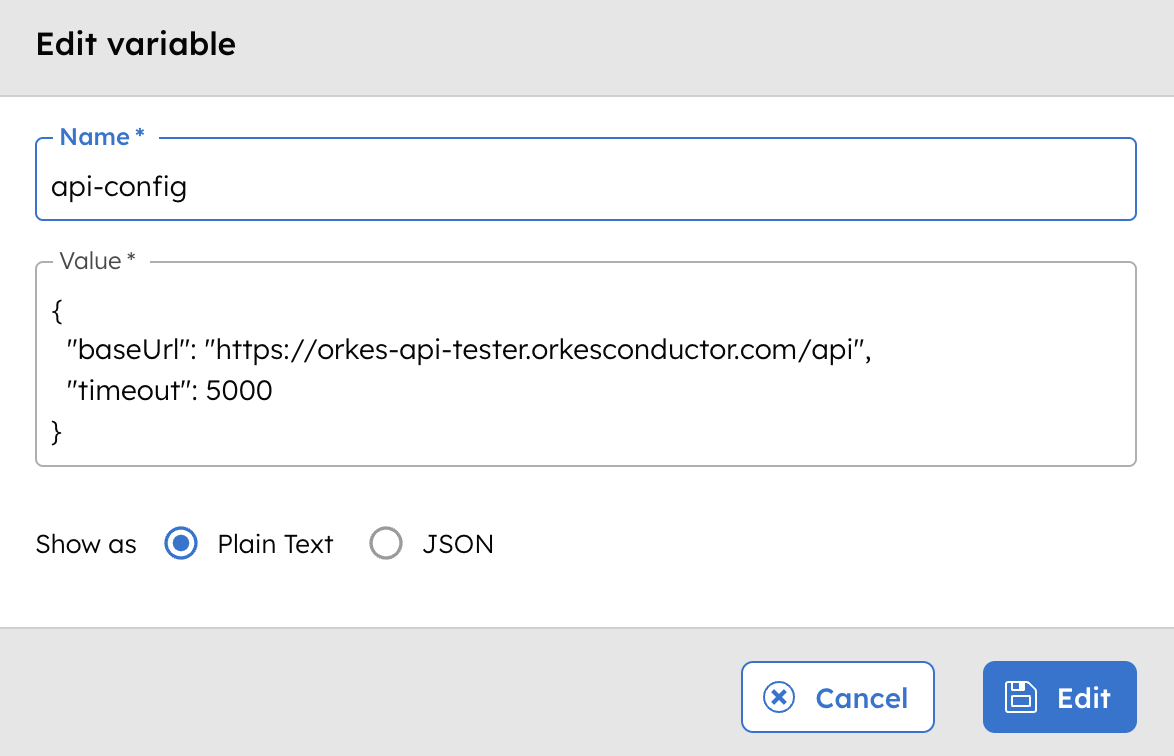

Environment variable stored as JSON

The following workflow references the stored JSON environment variable.

{
  "name": "json-env-example",
  "description": "Workflow demonstrating use of a JSON environment variable",
  "version": 1,
  "tasks": [
    {
      "name": "http",
      "taskReferenceName": "http_ref",
      "inputParameters": {
        "uri": "${workflow.env.api-config.$.baseUrl}",
        "method": "GET",
        "connectionTimeOut": "${workflow.env.api-config.$.timeout}",
        "readTimeOut": "${workflow.env.api-config.$.timeout}",
        "accept": "application/json",
        "contentType": "application/json",
        "encode": true
      },
      "type": "HTTP"
    }
  ],
  "schemaVersion": 2
}

In this example:

${workflow.env.api-config.$.baseUrl} accesses the baseUrl field of the JSON environment variable using dot notation.
${workflow.env.api-config.$.timeout} accesses the timeout field.

Run the workflow. To verify that the stored variable is passed correctly, open the workflow execution, select the HTTP task, and confirm that the resolved values appear in the Input tab.

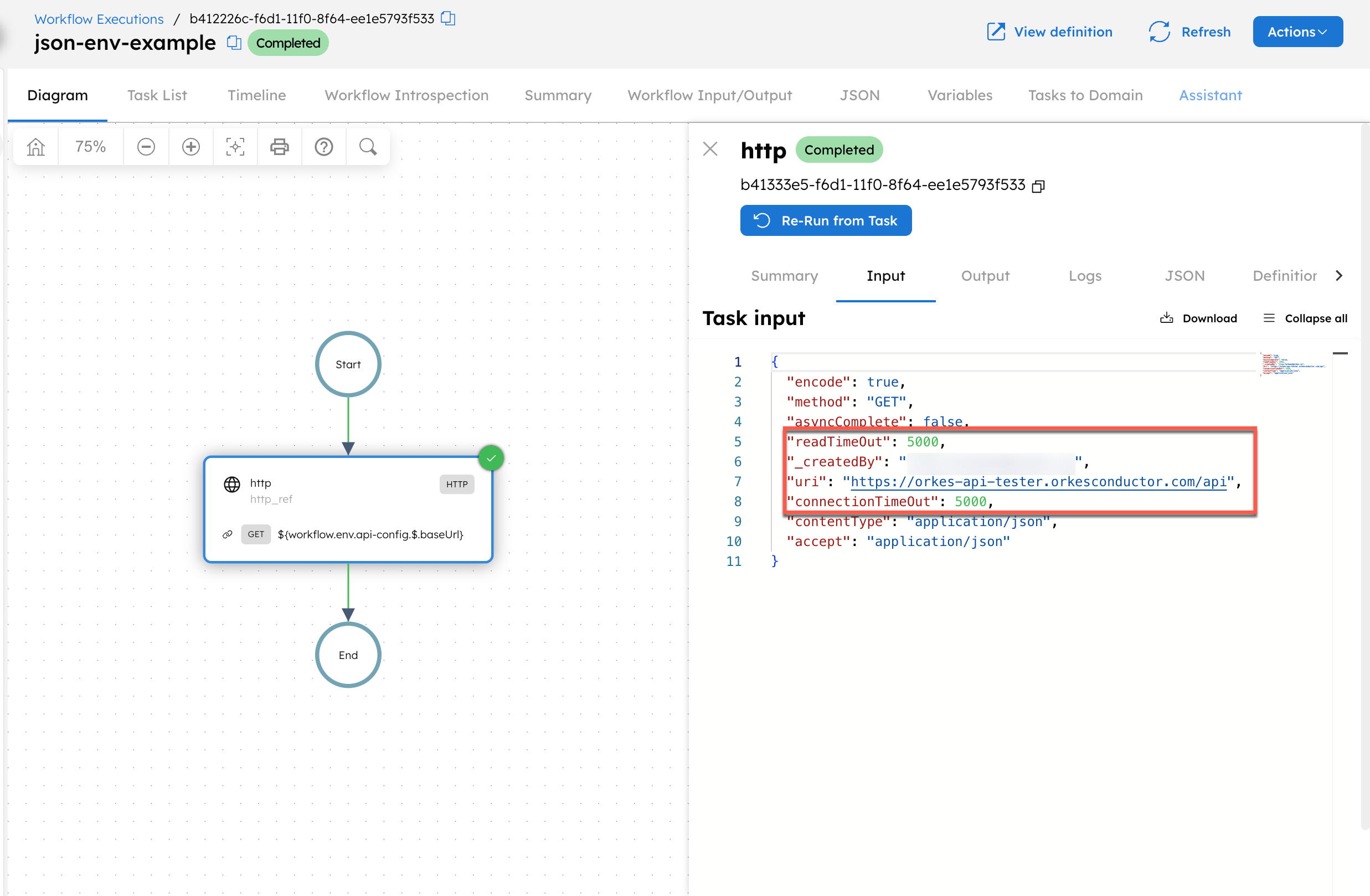

Environment variable parsed as JSON in workflow
