SendGrid

The task uses a pre-configured SendGrid integration for authentication and delivery. When the task runs, it connects to the SendGrid API and sends the email based on the task configuration, including the sender and recipient addresses, subject, and message body.

Prerequisites

Integrate SendGrid with Orkes Conductor.

Task parameters

Configure these parameters for the SendGrid task.

Parameter	Description	Required/ Optional
inputParameters.from	The sender’s email address. This must be a verified email in SendGrid. Learn more.	Required.
inputParameters.to	The recipient’s email address.	Required.
inputParameters.subject	The email subject.	Required.
inputParameters.contentType	The type of email content. Supported values: text/plain text/html	Required.
inputParameters.content	The email body.	Required.
inputParameters.sendgridConfiguration	The name of the SendGrid integration that is configured in your Orkes Conductor cluster.	Required.

The following are generic configuration parameters that can be applied to the task and are not specific to the SendGrid task.

Caching parameters

You can cache the task outputs using the following parameters. Refer to Caching Task Outputs for a full guide.

Parameter	Description	Required/ Optional
cacheConfig.ttlInSecond	The time to live in seconds, which is the duration for the output to be cached.	Required if using cacheConfig.
cacheConfig.key	The cache key is a unique identifier for the cached output and must be constructed exclusively from the task’s input parameters. It can be a string concatenation that contains the task’s input keys, such as `${uri}-${method}` or `re_${uri}_${method}`.	Required if using cacheConfig.

Other generic parameters

Here are other parameters for configuring the task behavior.

Parameter	Description	Required/ Optional
optional	Whether the task is optional. If set to`true`, any task failure is ignored, and the workflow continues with the task status updated to `COMPLETED_WITH_ERRORS`. However, the task must reach a terminal state. If the task remains incomplete, the workflow waits until it reaches a terminal state before proceeding.	Optional.

Task configuration

This is the task configuration for a SendGrid task.

   {
     "name": "sendgrid",
     "taskReferenceName": "sendgrid_ref",
     "inputParameters": {
       "from": "john.doe@acme.com",
       "to": "jane.doe@acme.com",
       "subject": "Email Subject",
       "contentType": "text/plain",
       "content": "Email Body",
       "sendgridConfiguration": "<INTEGRATION-NAME>"
     },
     "type": "SENDGRID"
   }

Task output

The SendGrid task will return the following parameters.

Parameter	Description
response	A JSON object representing the response, if present.
headers	An object containing the metadata about the response.
statusCode	The HTTP status code indicating success or failure of the request.
body	The response body containing the data returned by the API.

Examples

Here are some examples for using the SendGrid task.

Using the SendGrid task in a workflow

Notification workflows are common when end users must be alerted, such as for payments, alerts, or failures.

Consider a scenario where an organization uses SendGrid as its email notification platform. To create a simple email notification flow using Orkes Conductor, first create a SendGrid integration in your Conductor cluster.

Once the integration is created, note its name. For example, let’s use an integration named “SendGrid”.

The following workflow uses this integration to send an email notification.

To create the workflow using Conductor UI:

Go to Definitions > Workflow from the left navigation menu on your Conductor cluster.
Select + Define workflow.
In the Code tab, paste the following code, replacing your SendGrid integration name and sender email:

{
 "name": "email-notification-workflow",
 "description": "Email notification workflow using SendGrid",
 "version": 1,
 "tasks": [
   {
     "name": "sendgrid",
     "taskReferenceName": "sendgrid_ref",
     "inputParameters": {
       "from": "john.doe@acme.com", //Verified sender email in SendGrid
       "to": "${workflow.input.recipientEmail}",
       "subject": "Your renewal failed",
       "contentType": "text/plain",
       "content": "Hello, This is to notify that your subscription renewal for XYZ failed. ",
       "sendgridConfiguration": "SendGrid" // Integration name in Orkes Conductor
     },
     "type": "SENDGRID"
   }
 ],
 "inputParameters": [
   "recipientEmail"
 ],
 "schemaVersion": 2
}

After saving the workflow, go to the Run tab, enter the recipient email address in the input parameter field, and select Execute to run the workflow.

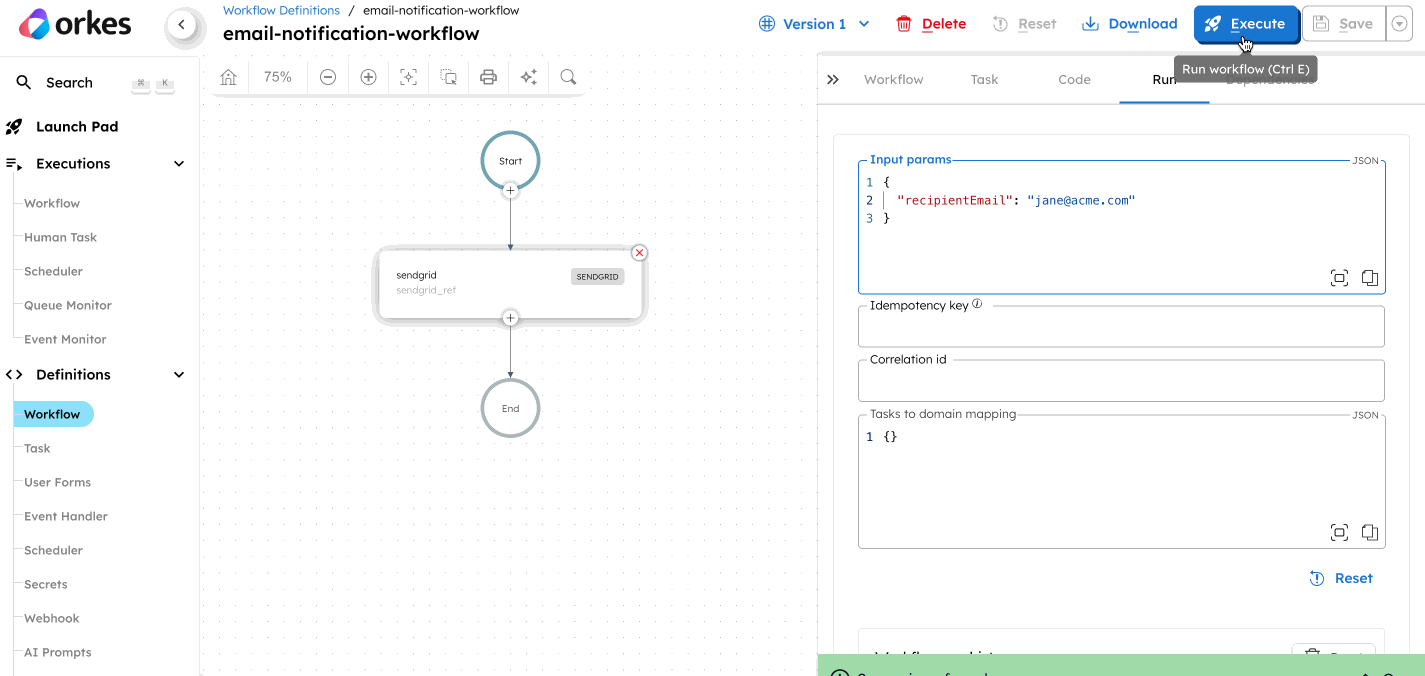

Executing email notification workflow in Orkes Conductor

After the workflow completes successfully, verify that the email is delivered to the recipient’s inbox.

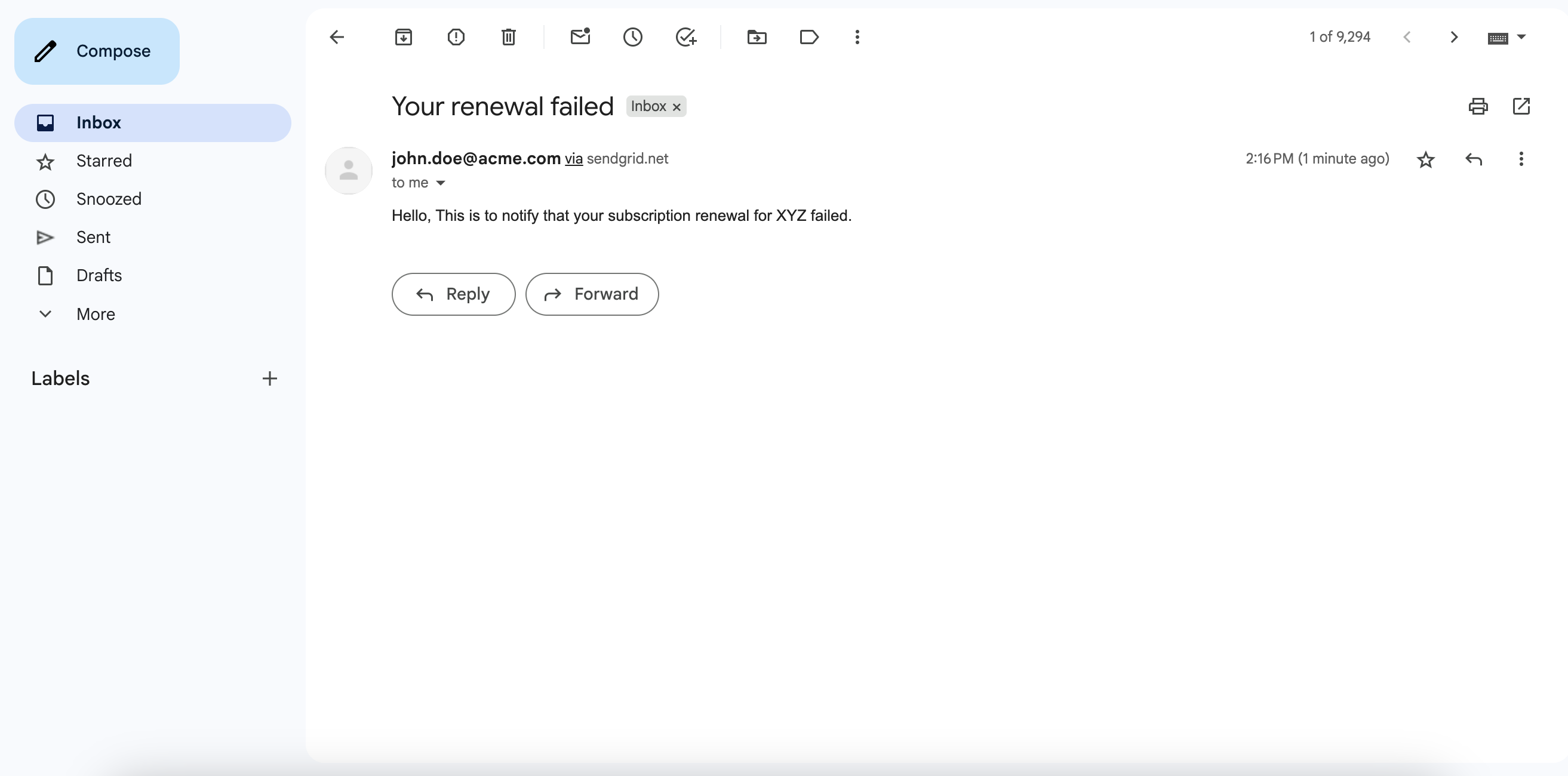

Email notification received via SendGrid task
