Parse Document

Available Since

• v5.2.38 and later

The Parse Document task is used to parse and chunk documents from various sources such as cloud storage (S3, GCS, Azure), Git repositories, and websites. It supports multiple file types, including Office documents, PDFs, HTML, images (via OCR), ZIP archives, and text files.

During execution, the task extracts text content from the specified location and converts it into Markdown format optimized for LLM processing. The Markdown format preserves headings, tables, lists, and other document structures, making it suitable for embedding generation, summarization, and semantic search workflows.

Prerequisites

If the location of the document is not publicly available, you must create an appropriate integration with the required access keys or tokens. Integrate the following with Orkes Conductor, depending on your source: - Git Repository - Cloud Providers

Task parameters

Configure these parameters for the Parse Document task.

Parameter	Description	Required/ Optional
inputParameters.integrationName	If the location of the document to be parsed is not publicly available, select the integration name of the Git Repository or Cloud Providers integrated with your Conductor cluster. Note: If you haven’t configured any integration on your Orkes Conductor cluster, go to the Integrations tab and configure the Git Repository or required Cloud Providers.	Optional.
inputParameters.url	The URL of the document or archive to parse. Examples for URL format: s3://bucket/document.pdf https://example.com/document.pdf file:///path/to/document.pdf	Required.
inputParameters.mediaType	The media type to parse. If omitted, the system automatically detects it. All documents are converted to Markdown. Supported values: Parameter Description all Document type is automatically detected based on content and file extension. application/vnd.openxmlformats-officedocument.wordprocessingml.document For Word document (.docx). application/vnd.openxmlformats-officedocument.spreadsheetml.sheet For Excel spreadsheet (.xlsx). application/vnd.openxmlformats-officedocument.presentationml.presentation For PowerPoint presentation (.pptx). application/msword For Word document (.doc). application/vnd.ms-excel For Excel spreadsheet (.xls). application/vnd.ms-powerpoint For PowerPoint presentation (.ppt). application/pdf For PDF document. text/html For HTML files. image/jpeg, image/png, image/gif, image/bmp, image/tiff Image will be processed with OCR (Optical Character Recognition) to extract text content and convert to Markdown format. application/zip, application/x-zip-compressed ZIP archive will be automatically extracted and all supported documents inside will be parsed and converted to Markdown. text/plain, text/markdown Text content will be parsed and converted to Markdown format with appropriate formatting. It can also be passed as a variable.	Optional.
inputParameters.chunkSize	The maximum number of characters per chunk. Enter 0 for no chunking, or a value between 100 and 10,000 for semantic chunking. The default value is 0, where the entire document will be returned as a single markdown output.	Optional.
inputParameters.outputGuardrail	Scrubs or validates the extracted text before it's returned. inputGuardrail isn't supported for this task, since the input is a file, not scrubbable text. Field Description outputGuardrail.type The guardrail type: JAVASCRIPT, HTTP, or WORKFLOW. outputGuardrail.target The JS expression, URL, or workflow name to run, depending on type. outputGuardrail.version The workflow version to use. Applies only when type is WORKFLOW. Defaults to the latest version. outputGuardrail.headers Extra request headers to send, such as an API key. Applies only when type is HTTP. outputGuardrail.failureMode FAIL (default) fails the task if the guardrail fails. WARN logs the failure and continues with the original text. Refer to LLM Task Guardrails for a full guide.	Optional.

The following are generic configuration parameters that can be applied to the task and are not specific to the Parse Document task.

Other generic parameters

Here are other parameters for configuring the task behavior.

Parameter	Description	Required/ Optional
optional	Whether the task is optional. If set totrue, any task failure is ignored, and the workflow continues with the task status updated to COMPLETED_WITH_ERRORS. However, the task must reach a terminal state. If the task remains incomplete, the workflow waits until it reaches a terminal state before proceeding.	Optional.

Task configuration

This is the task configuration for a Parse Document task.

{
     "name": "parse_document",
     "taskReferenceName": "parse_document_ref",
     "inputParameters":
     {
       "integrationName": "<YOUR-INTEGRATION-HERE>",
       "url": "<DOCUMENT-URL>",
       "mediaType": "auto",
       "chunkSize": 1024
     },
     "type": "PARSE_DOCUMENT"
}

Task output

The Parse Document task will return the following parameters.

Parameter	Description
result	Array of strings containing the parsed document text. Each element is one text segment; if chunkSize is 0, the array contains a single element with the full content.

Examples

Here are some examples for using the Parse Document task.

Using Parse Document task

To illustrate the Parse Document task, the following workflow parses a publicly available PDF.

To create a workflow definition using Conductor UI:

1. Go to Definitions > Workflow, from the left navigation menu on your Conductor cluster.
2. Select + Define workflow.
3. In the Code tab, paste the following code:

Workflow definition:

{
  "name": "parse_document_example_pdf",
  "description": "Parse a public PDF and return text segments",
  "version": 1,
  "schemaVersion": 2,
  "tasks": [
    {
      "name": "parse_document",
      "taskReferenceName": "pd",
      "type": "PARSE_DOCUMENT",
      "inputParameters": {
        "url": "https://www.niti.gov.in/sites/default/files/2023-02/Annual-Report-2022-2023-English_06022023_compressed.pdf",
        "mediaType": "application/pdf",
        "chunkSize": 1000
      }
    }
  ]
}

1. Select Save > Confirm.

Let’s execute the workflow using the Execute button.

When executed, the workflow retrieves the PDF from the provided URL, extracts readable text content, and divides it into smaller text segments based on the specified chunk size.

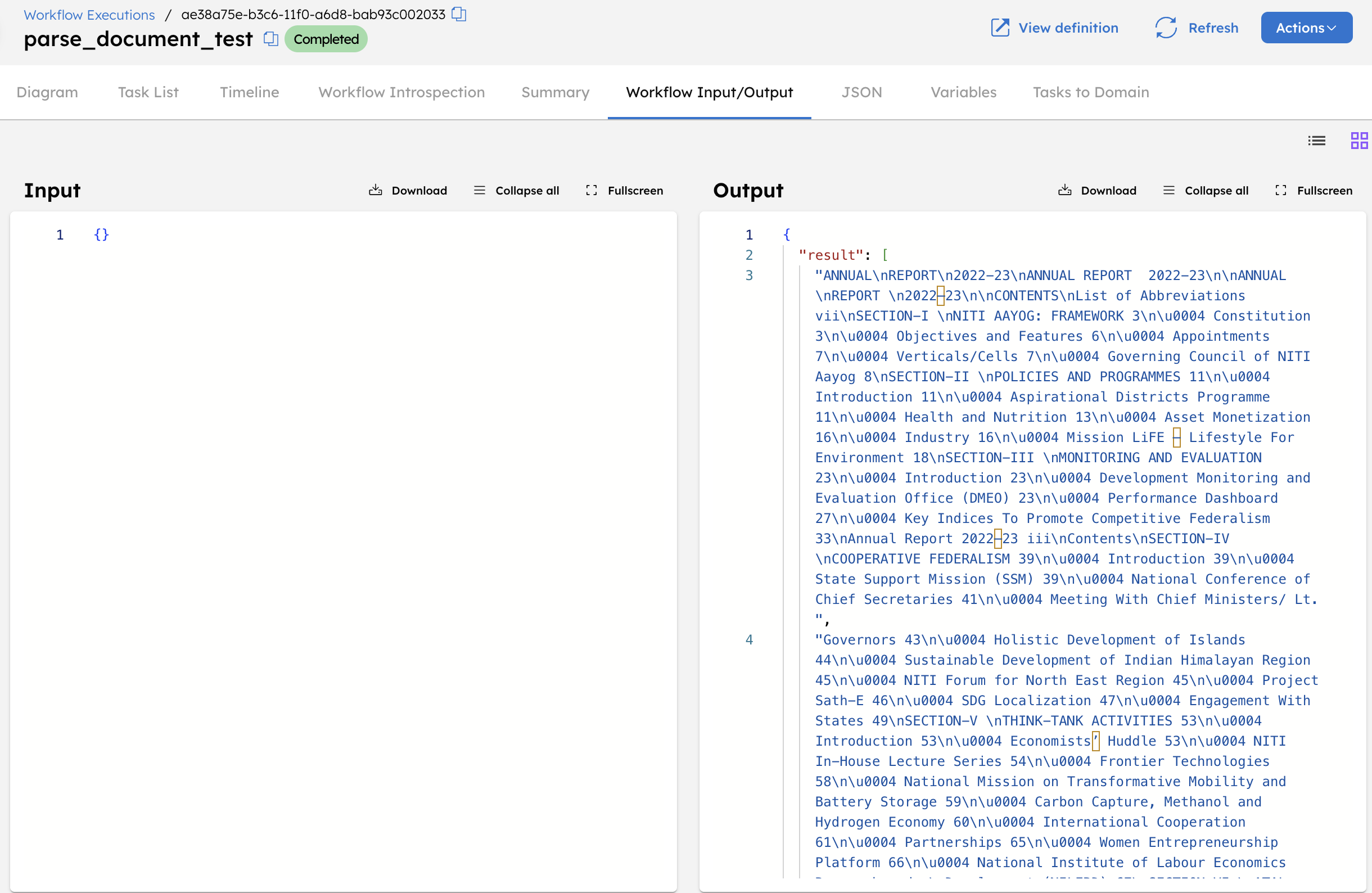

After successful execution, the Parse Document task produces the following output:

Each segment preserves the structure and order of the document, including section headers and line breaks. The extracted segments are returned in the result array and are ready for downstream processing, such as summarization, embedding generation, or indexing.
